SKU: CI-15

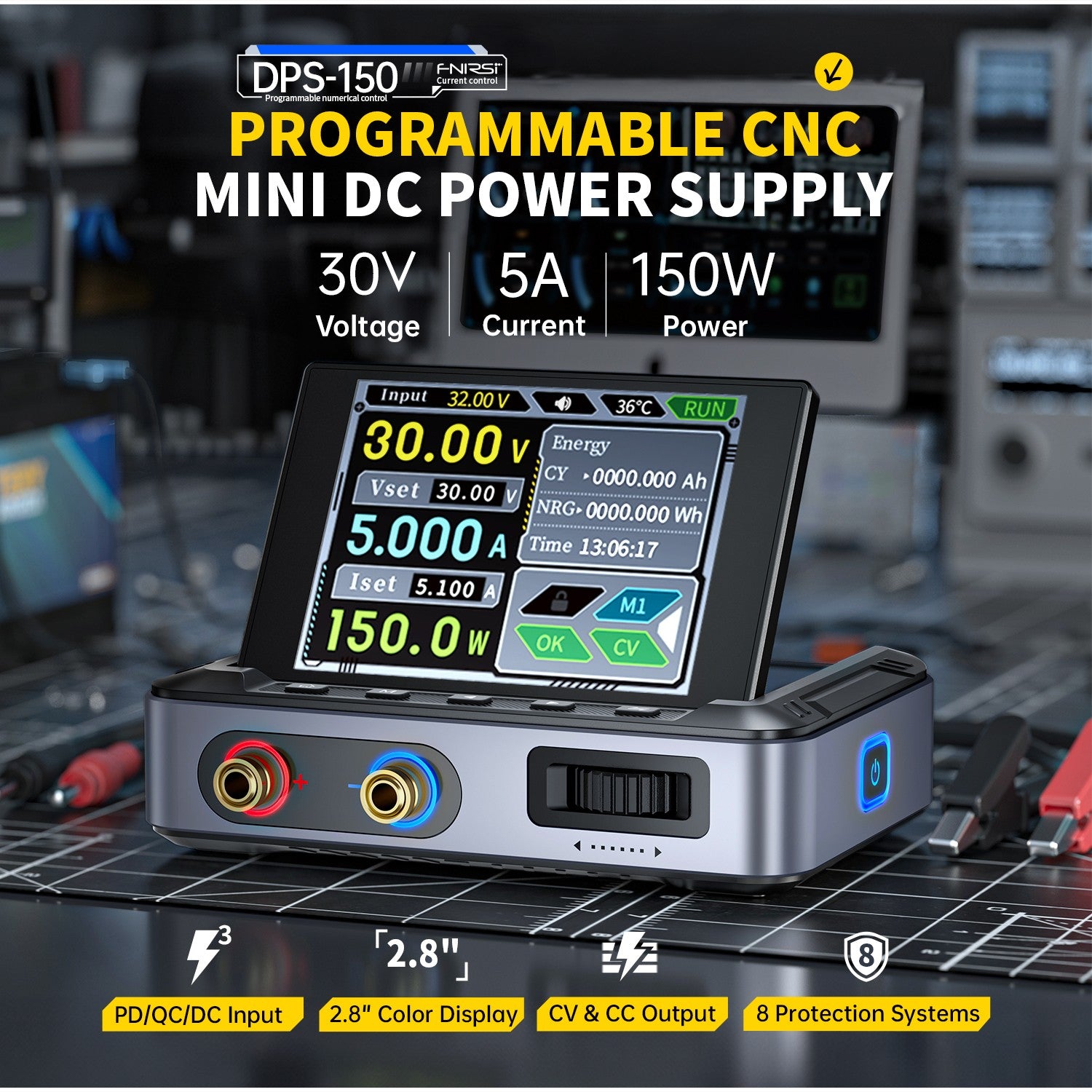

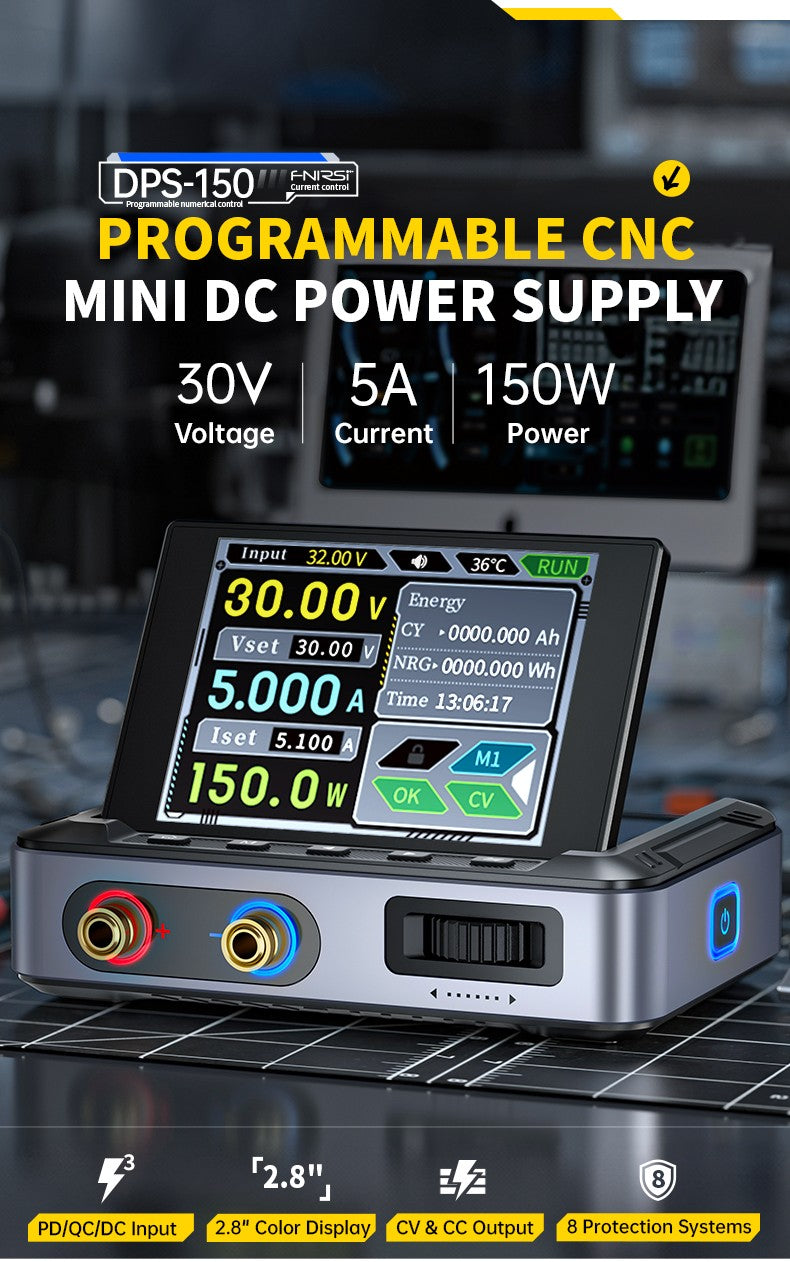

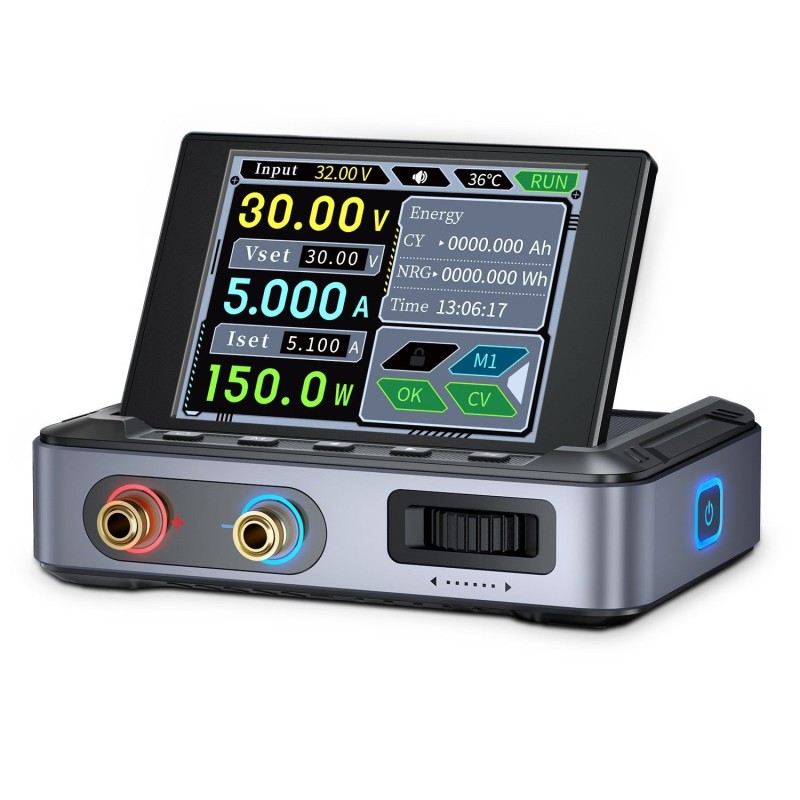

FNIRSI® DPS-150 Mini DC Adjustable CNC Programmable Regulated Switching Power Supply
9,873.00 EGP
The FNIRSI-DP150 is a high-performance adjustable DC power supply launched by our company. It features a Type-C input interface and multiple power supply modes, allowing precise adjustment of output voltage (0-30V) and c…
The FNIRSI-DP150 is a high-performance adjustable DC power supply launched by our company. It features a Type-C input interface and multiple power supply modes, allowing precise adjustment of output voltage (0-30V) and current (0-5A). It provides efficient, low-consumption, and stable output, equipped with multiple safety protection functions including overvoltage, overcurrent, overload, overheating, and reverse connection. It can be flexibly applied to serial connection of multiple devices, with rich and user-friendly display and operation, compact and portable humanized design, meeting various application needs. It is designed to provide you with high-performance and stable CNC power supply.

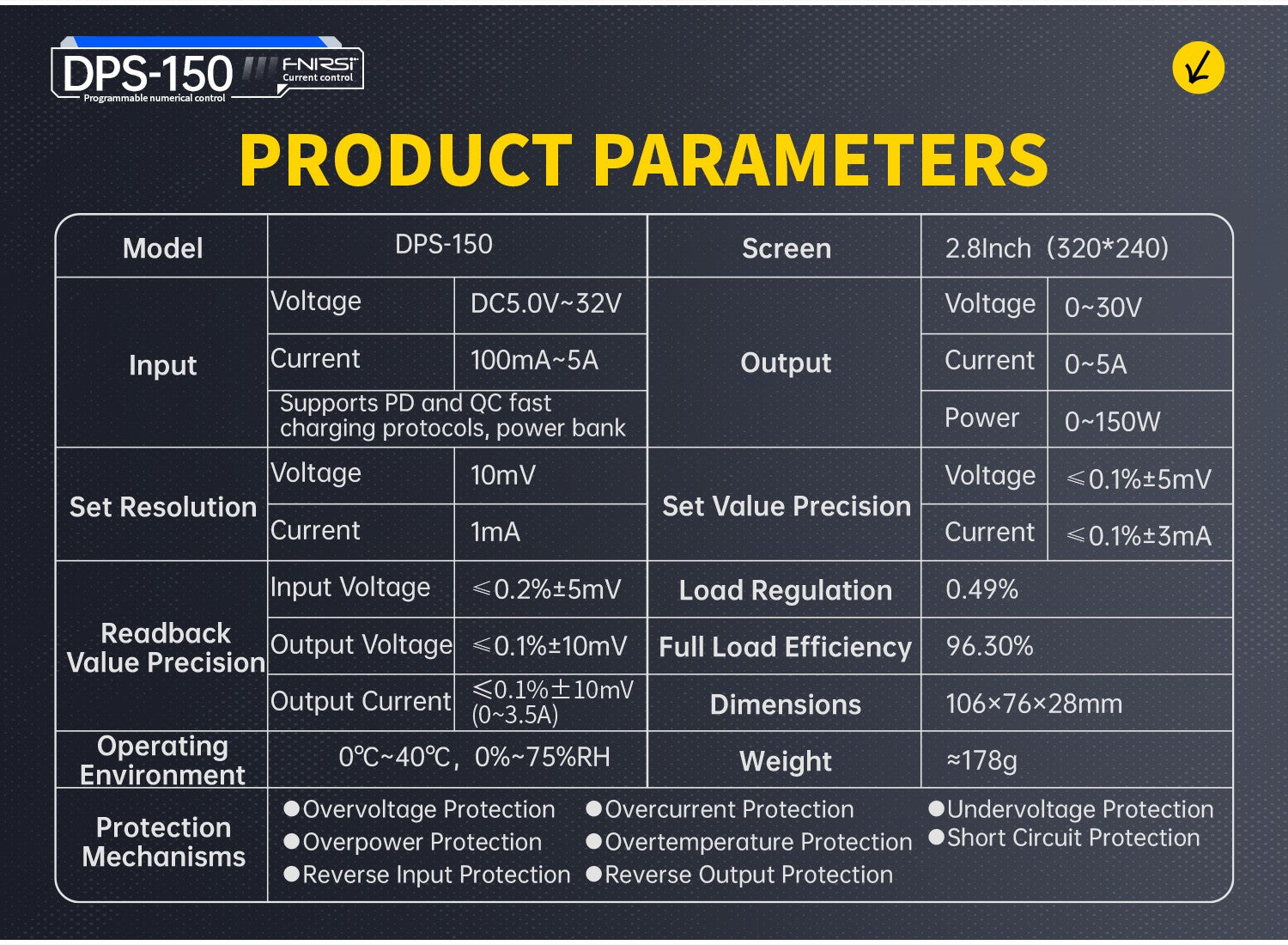

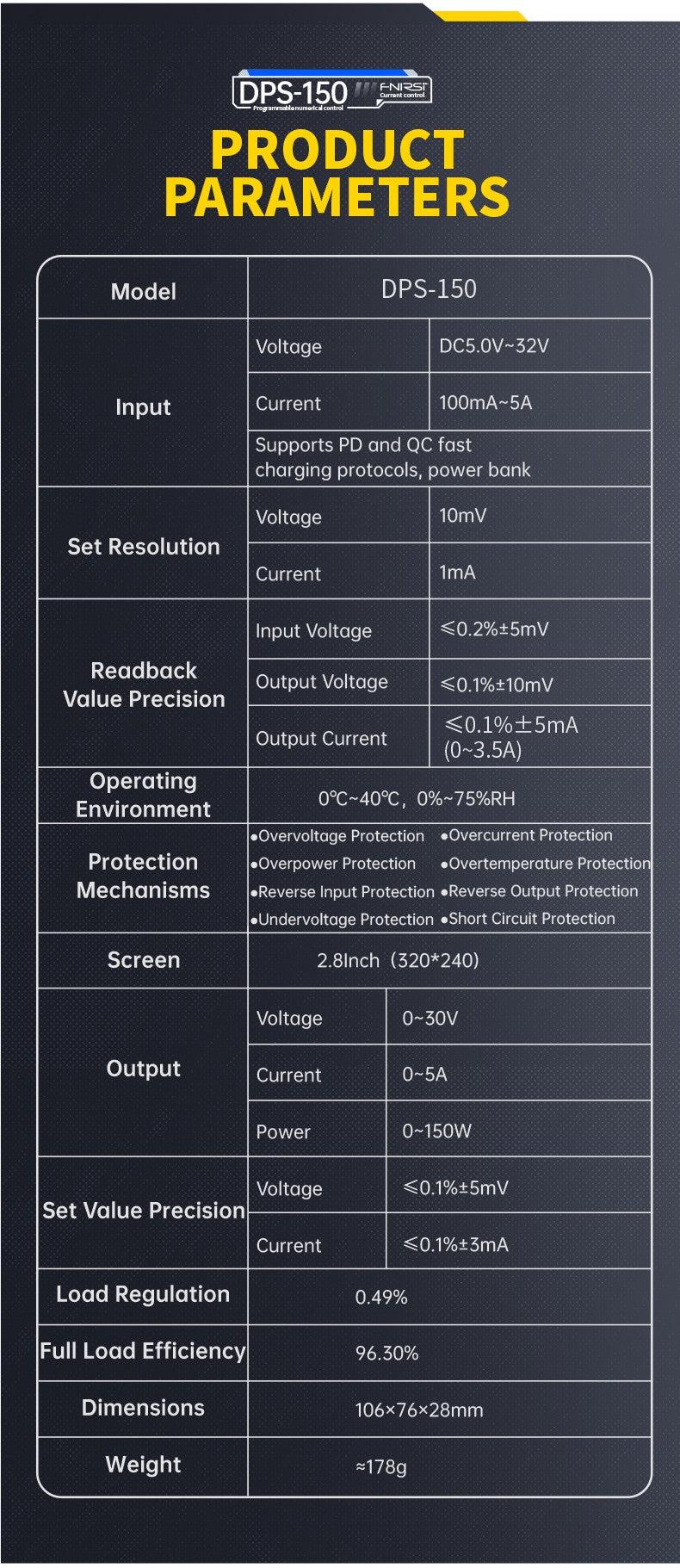

Specifications
Brand
FNIRSI
Model
DPS-150
Input Voltage
DC 5.0V~32V
Input Current
100mA-5A

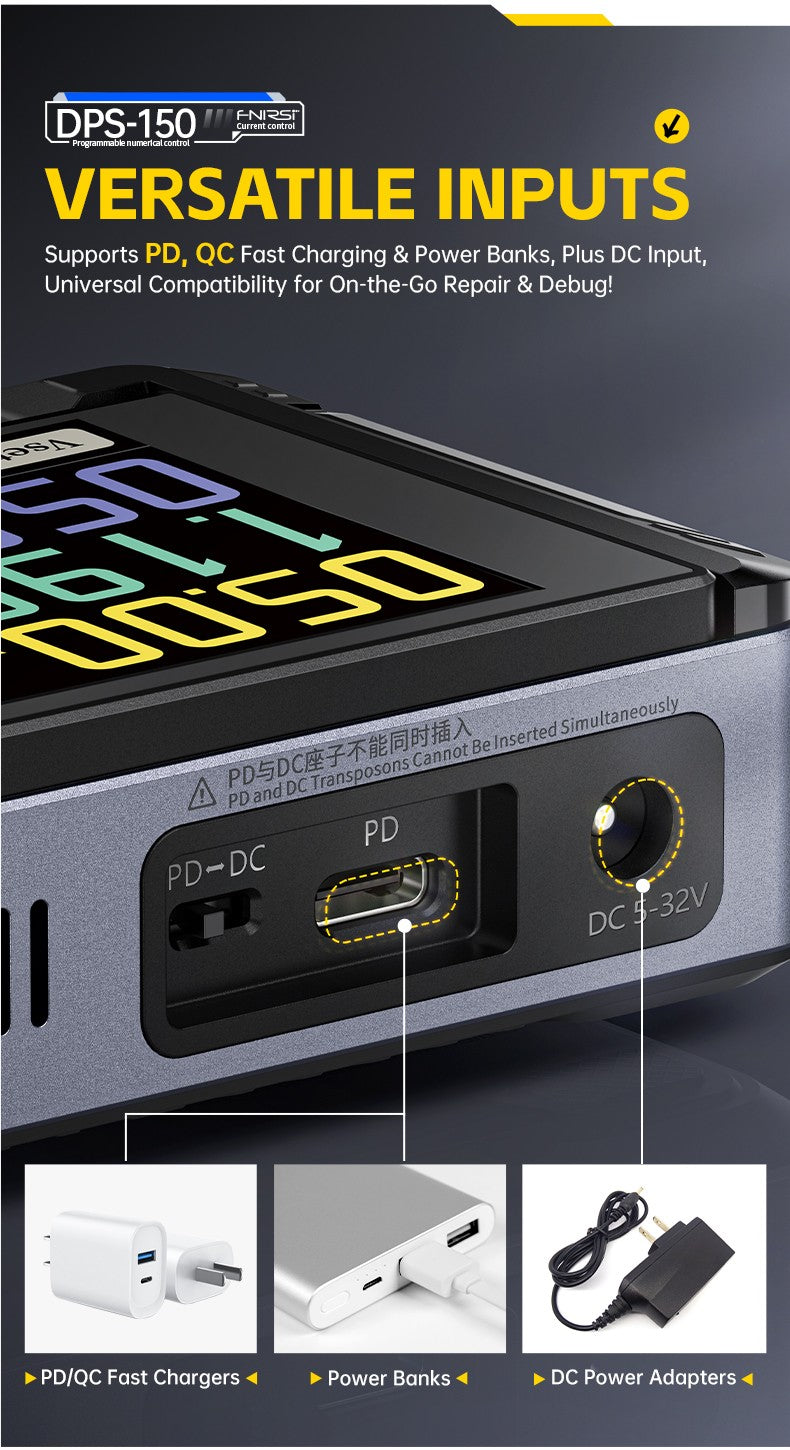

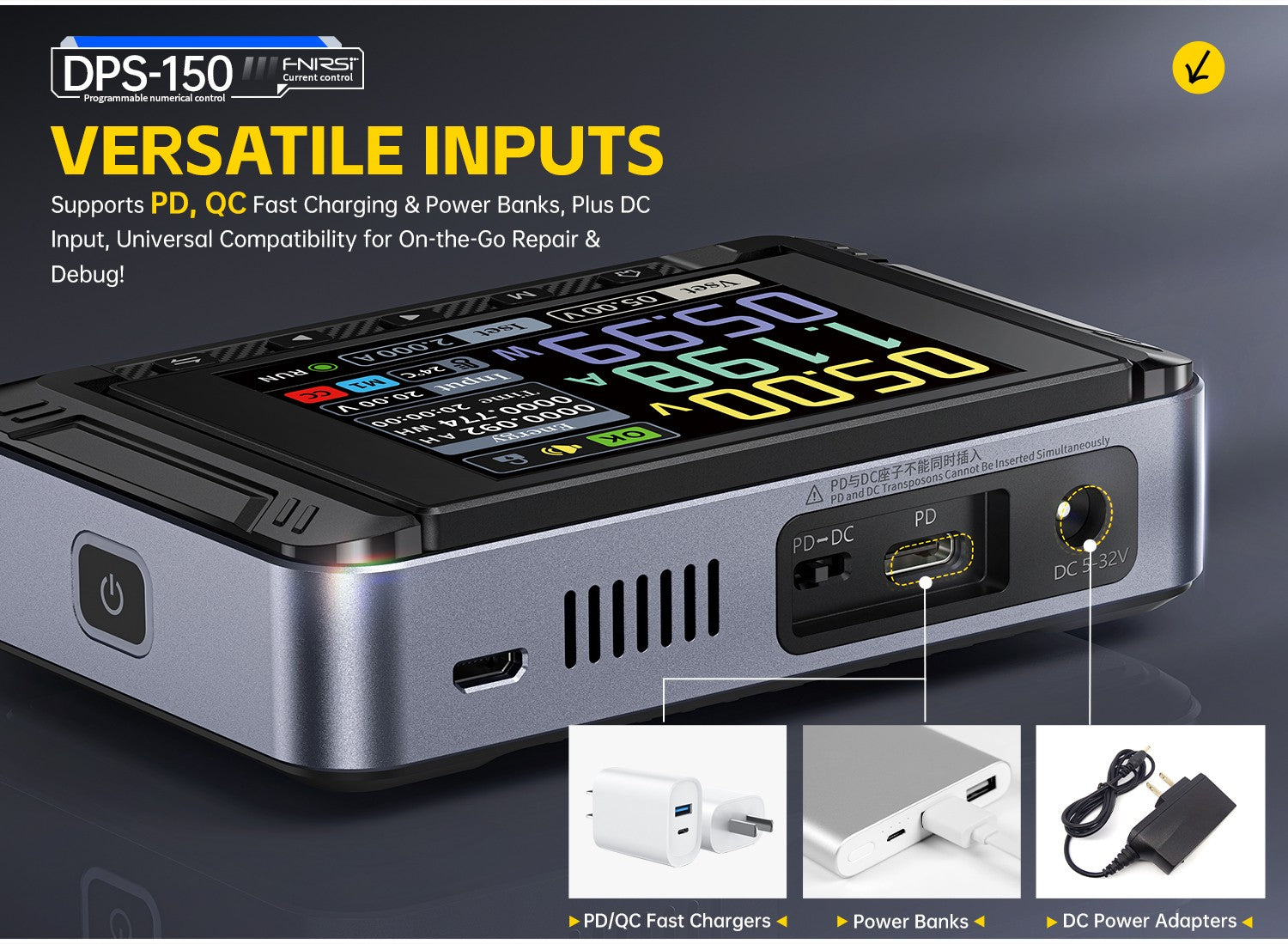

Input Way
PD fast charger
QC fast charger
Power bank
DC power adapters
QC fast charger
Power bank
DC power adapters
Output Voltage
0~30V
Output Current
0~5A
Output Power
0-150W
Operating Environment
0℃-40℃
Load Regulation
0.49%
Full Load Efficiency
96.30%

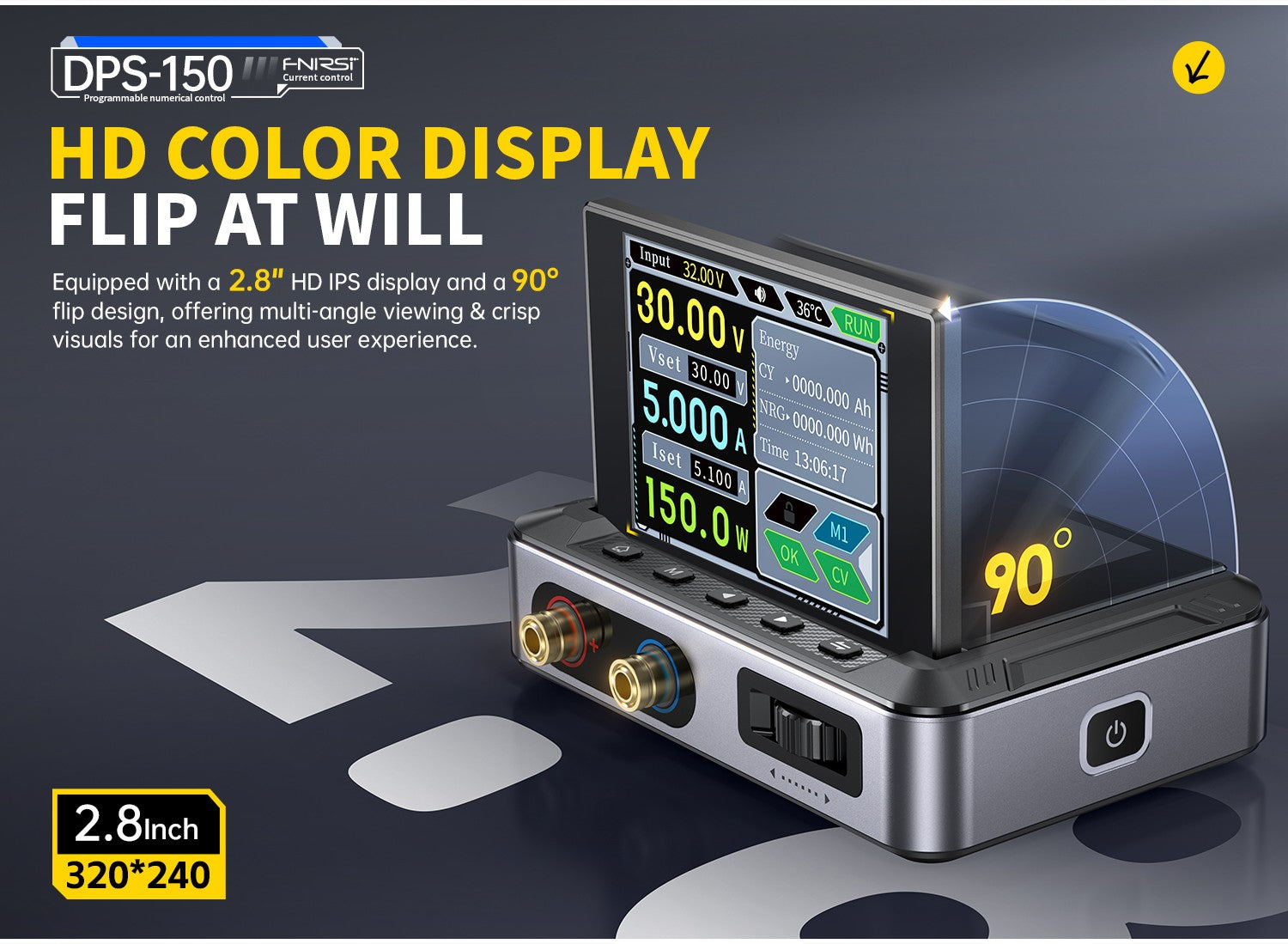

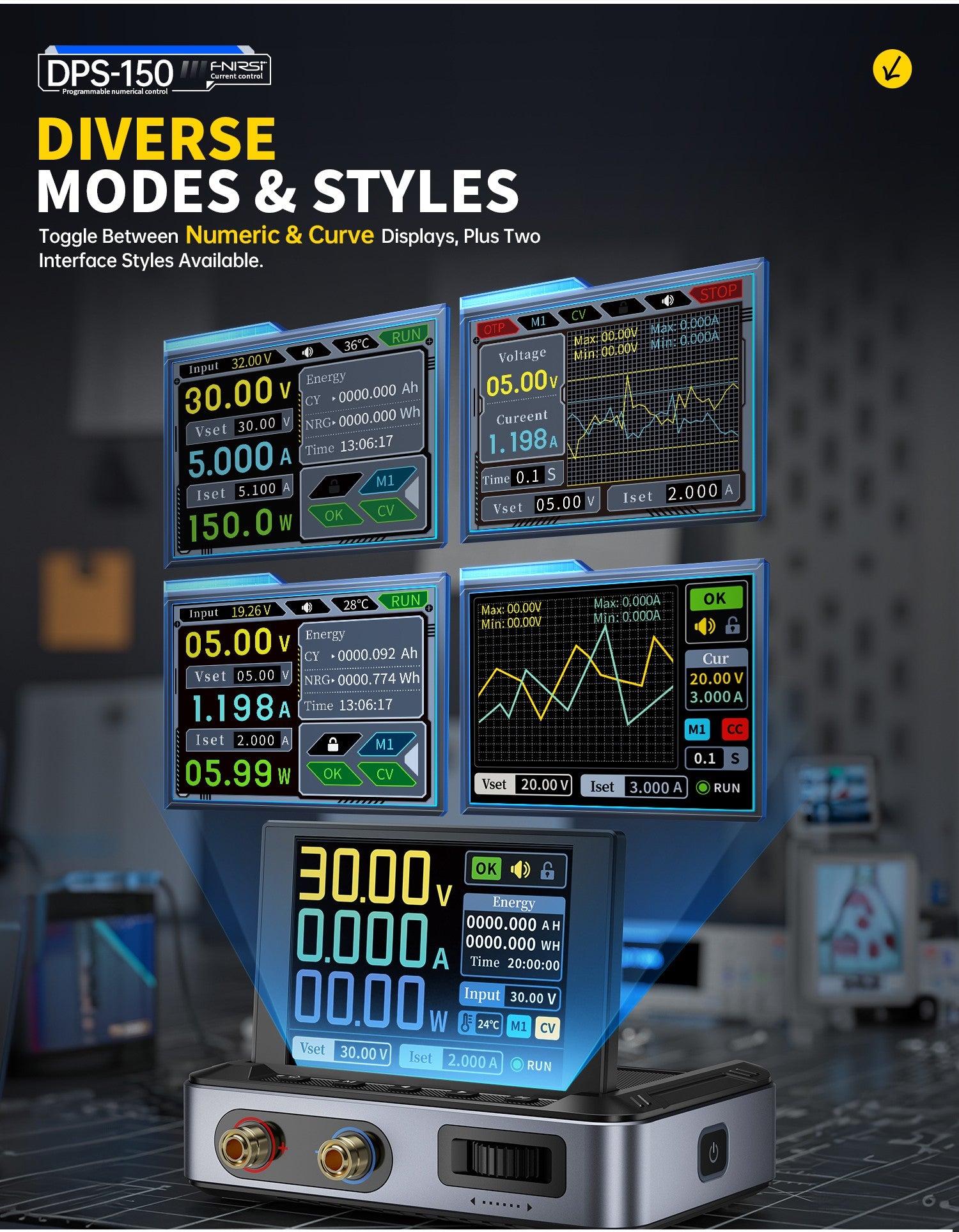

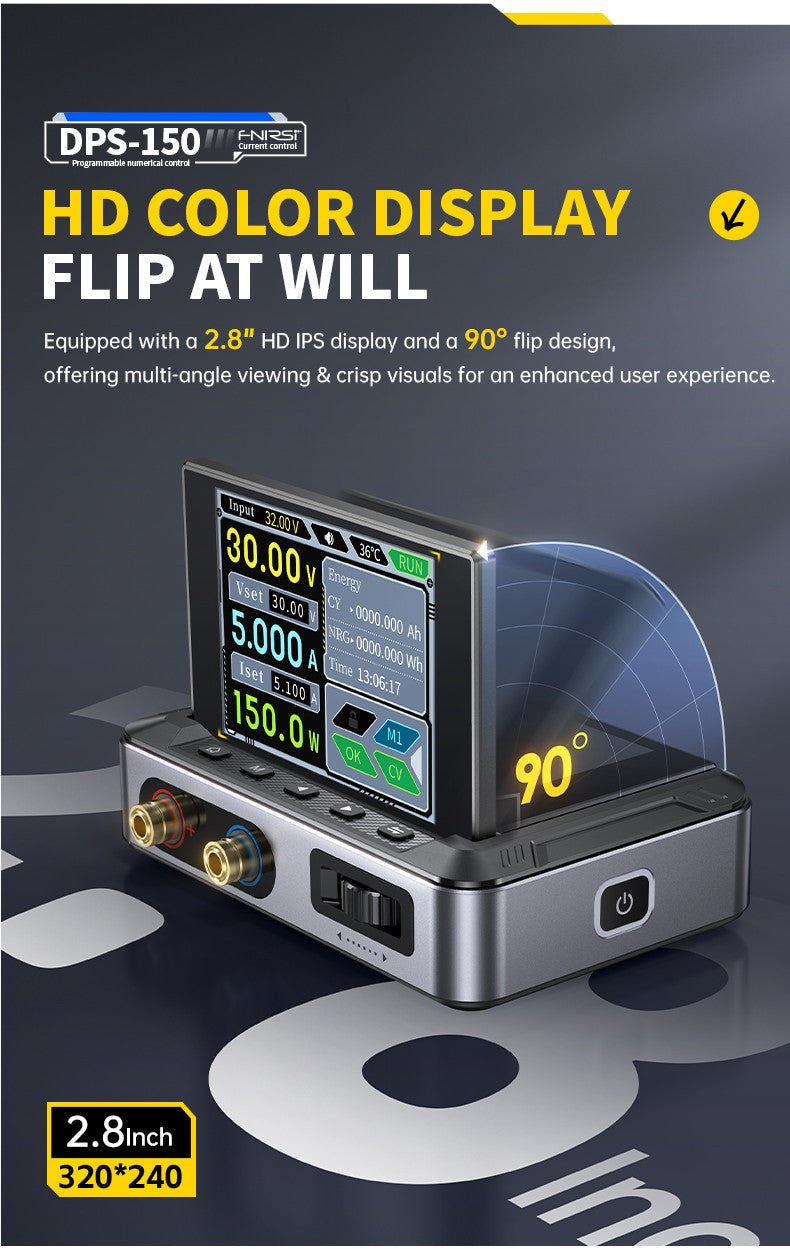

Screen
2.8 Inch (320x240)
Weight
about 178g
Dimensions
106x76x28mm

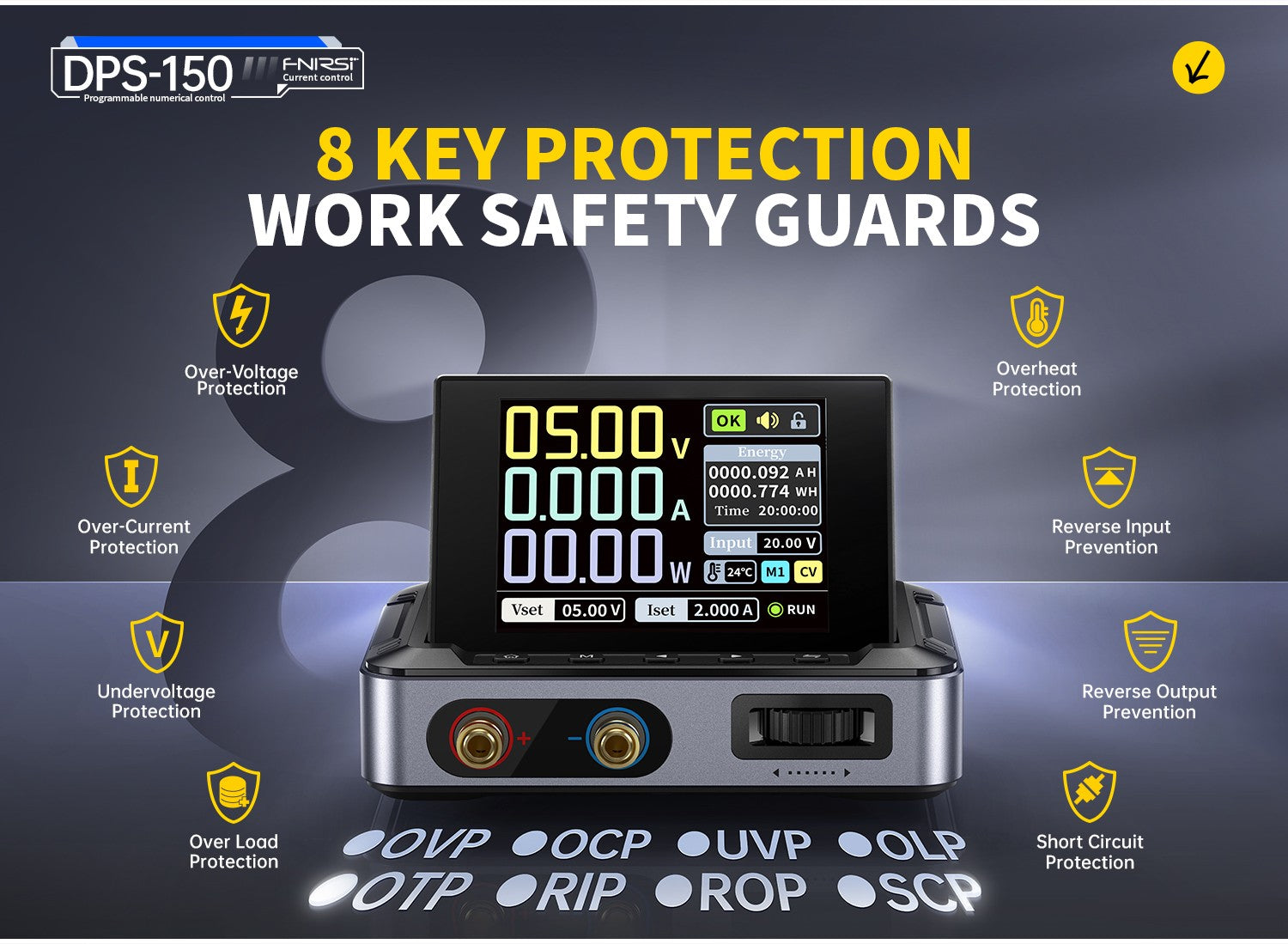

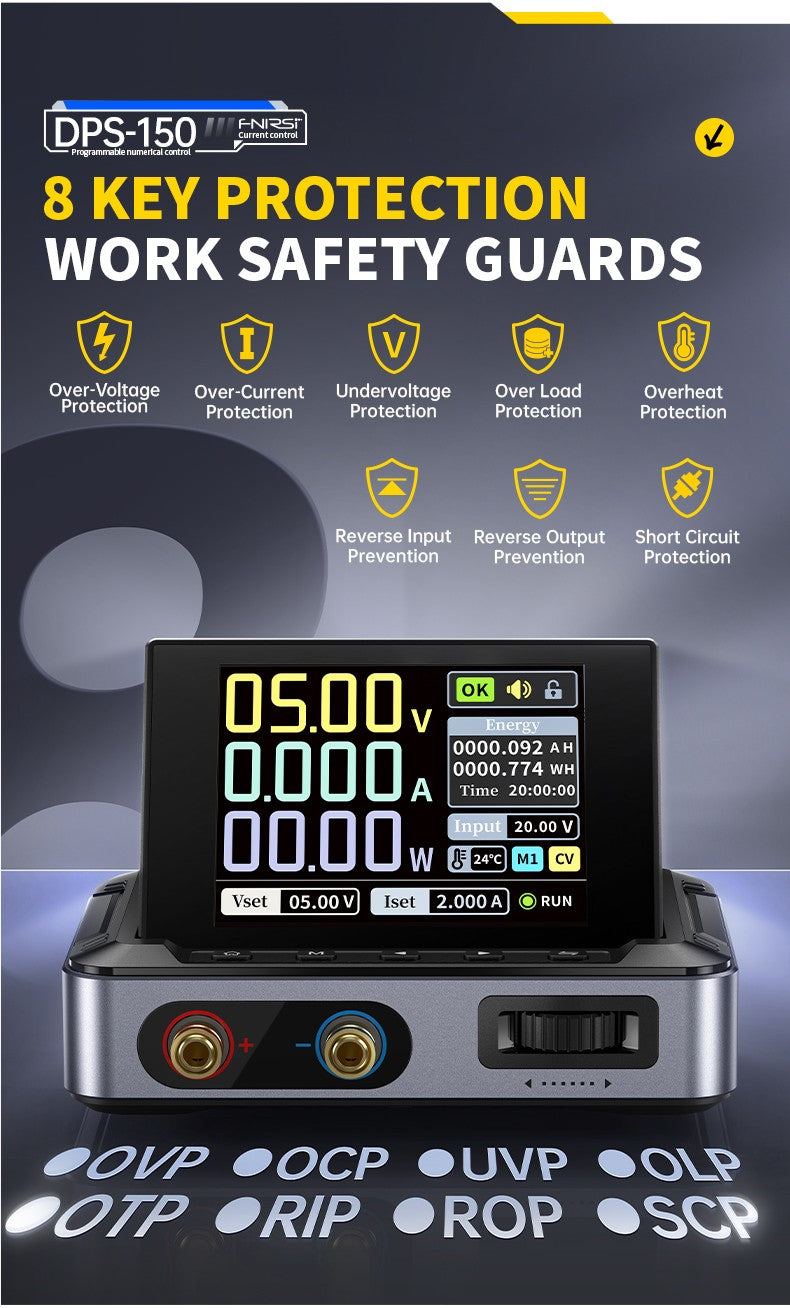

Overvoltage Protection
Support
Overcurrent Protection
Support
Undervoltage Protection
Support
Overpower Protection
Support
Overtemperature Protection
Support
Reverse Input Protection
Support
Reverse Output Protection
Support
Short Circuit Protection
Support

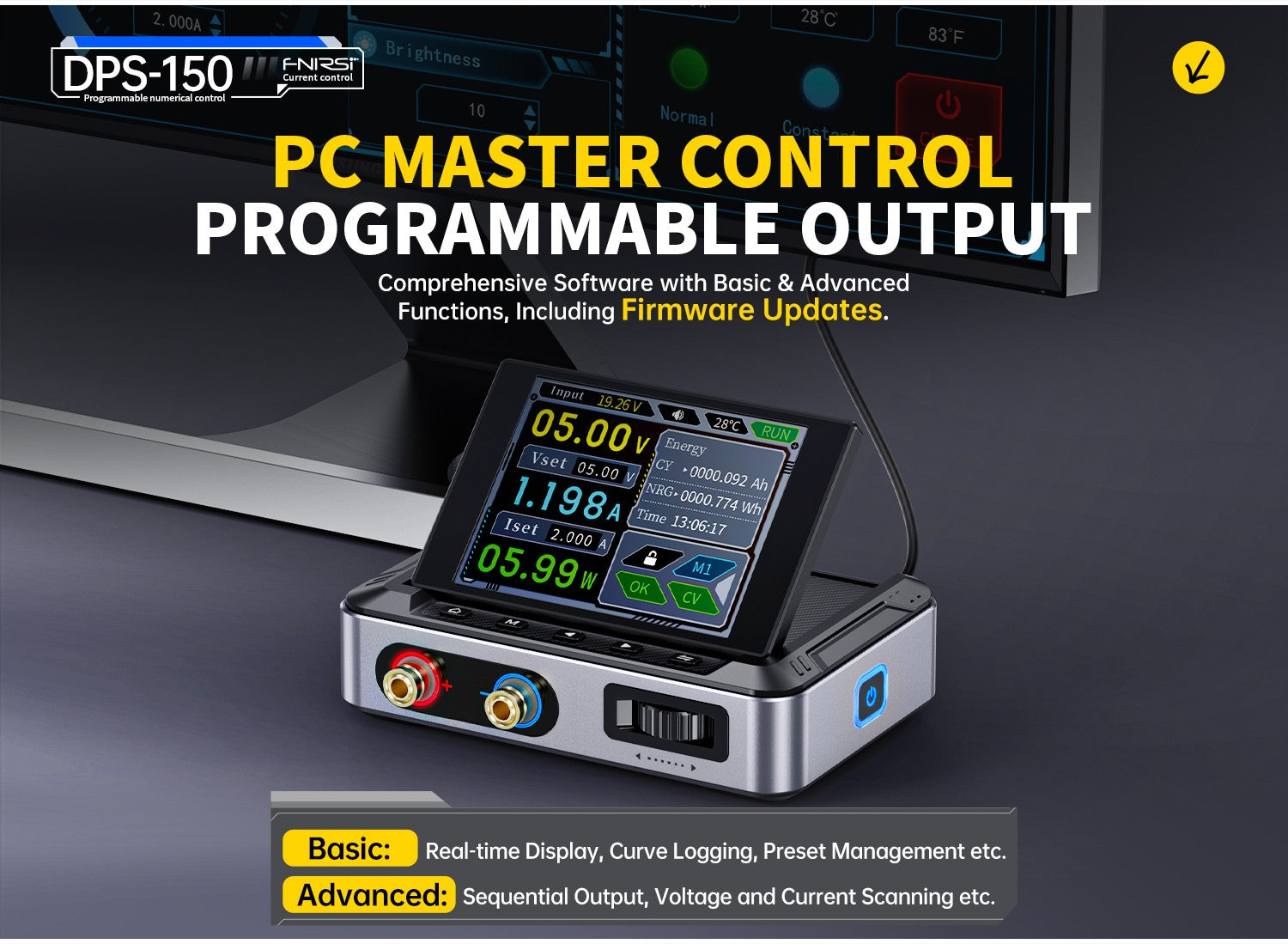

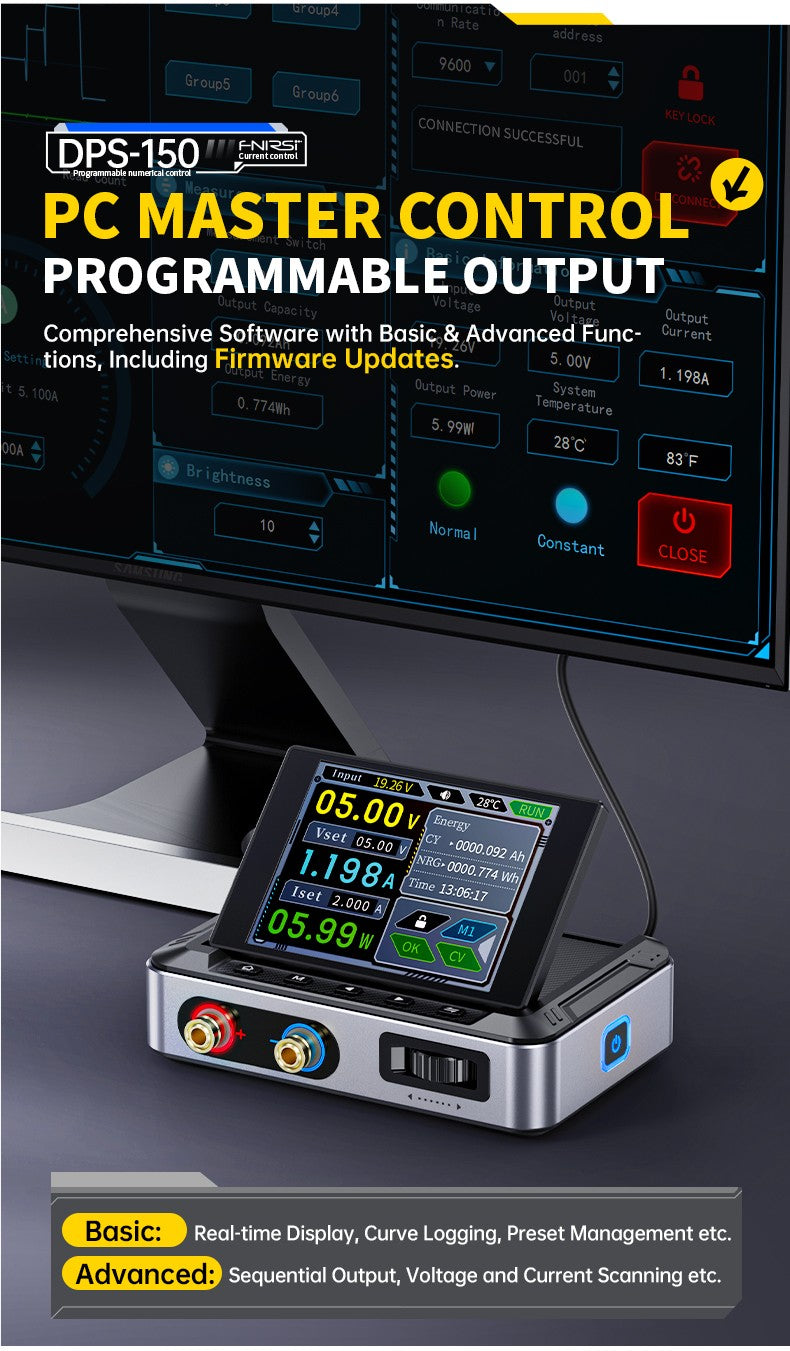

Upper Computer Software
Support
Firmware Upgrade
Support
⚠ Precautions
- The product operates in step-down mode, so ensure that the input voltage is higher than the output voltage
- The power supply range for this product is Dc 5V~30v. Output will be disabled if the input voltage is lower than 5.0V due to undervoltage lockout, and the device may be damaged if the input voltage exceeds 30V. lt is recommended to use a power supply ranging from 5V to 30V.
- When supplying power to inductive and capacitive loads, it is recommended to connect the load before turning on the device output.

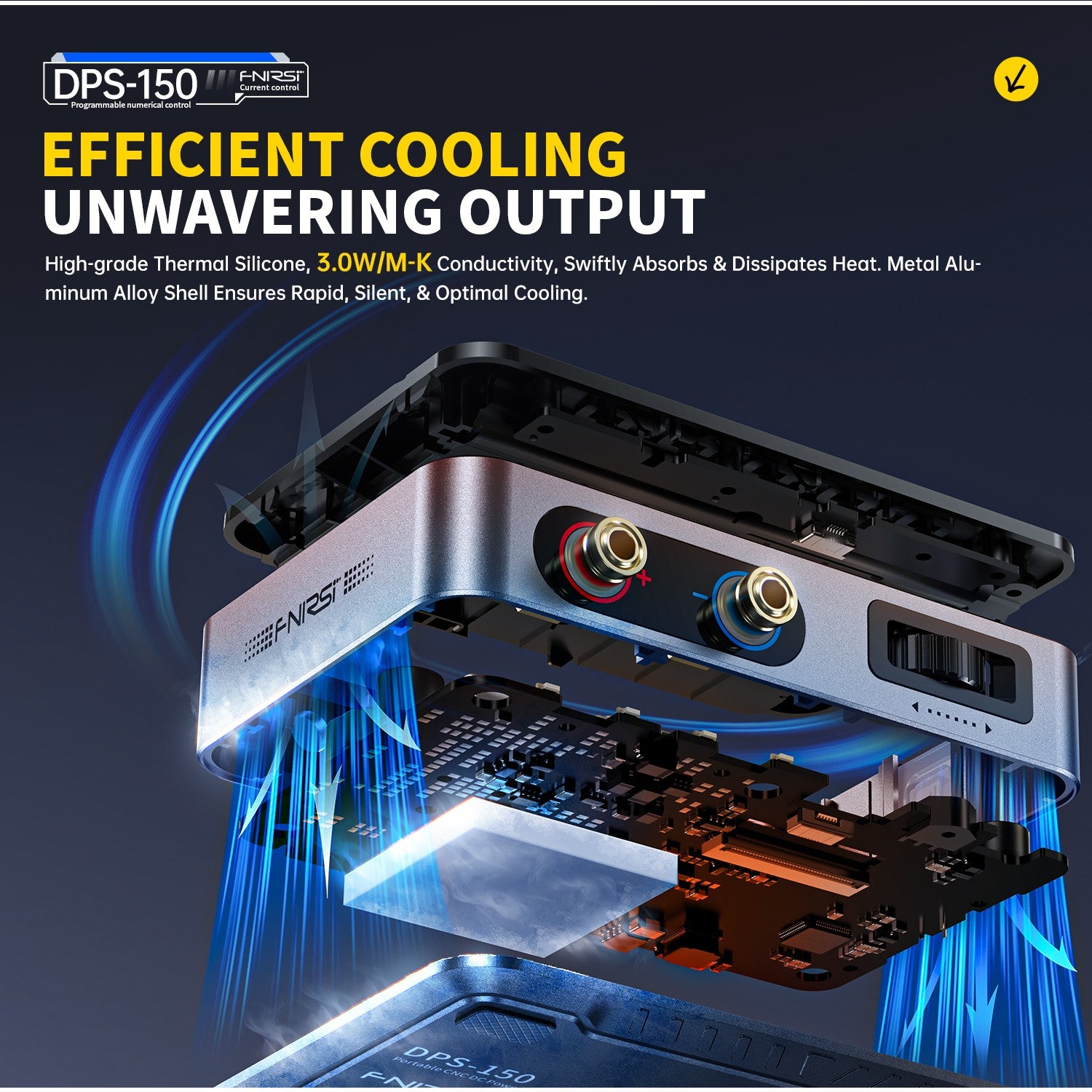

- When outputting high power, some heat generation is normal. lt is recommended to use the device in a well-ventilated environment.
- Please remember not to connect power to both power ports of the device simultaneously, as simultaneous power supply may potentially damage the input source with lower voltage.
- When charging batteries, it is strongly recommended to add a reverse current protection module (such as a Schottky diode) to the output end to protect the device from damage.
