SKU: CI-38

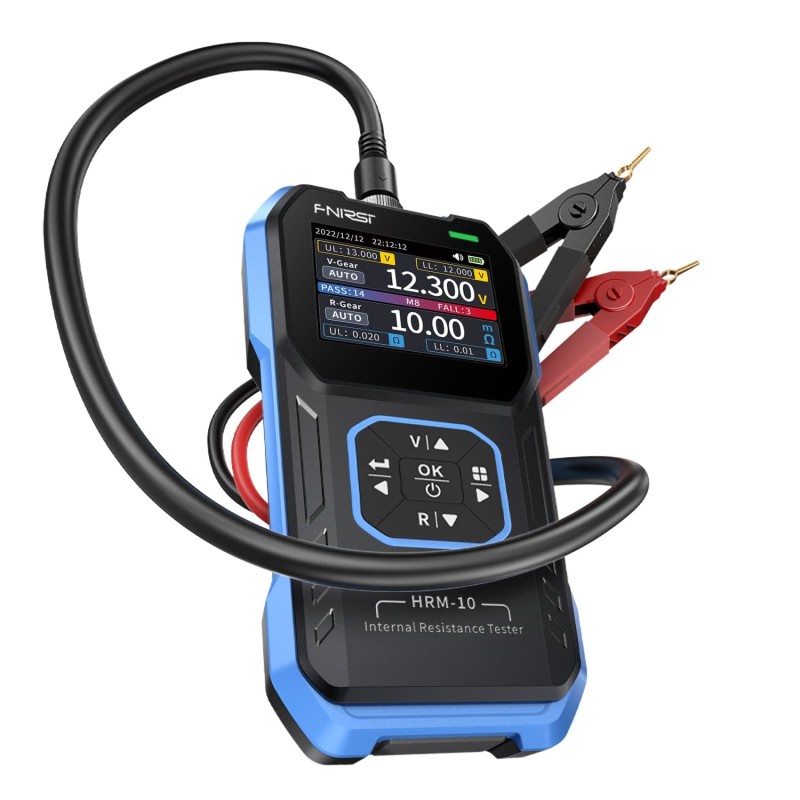

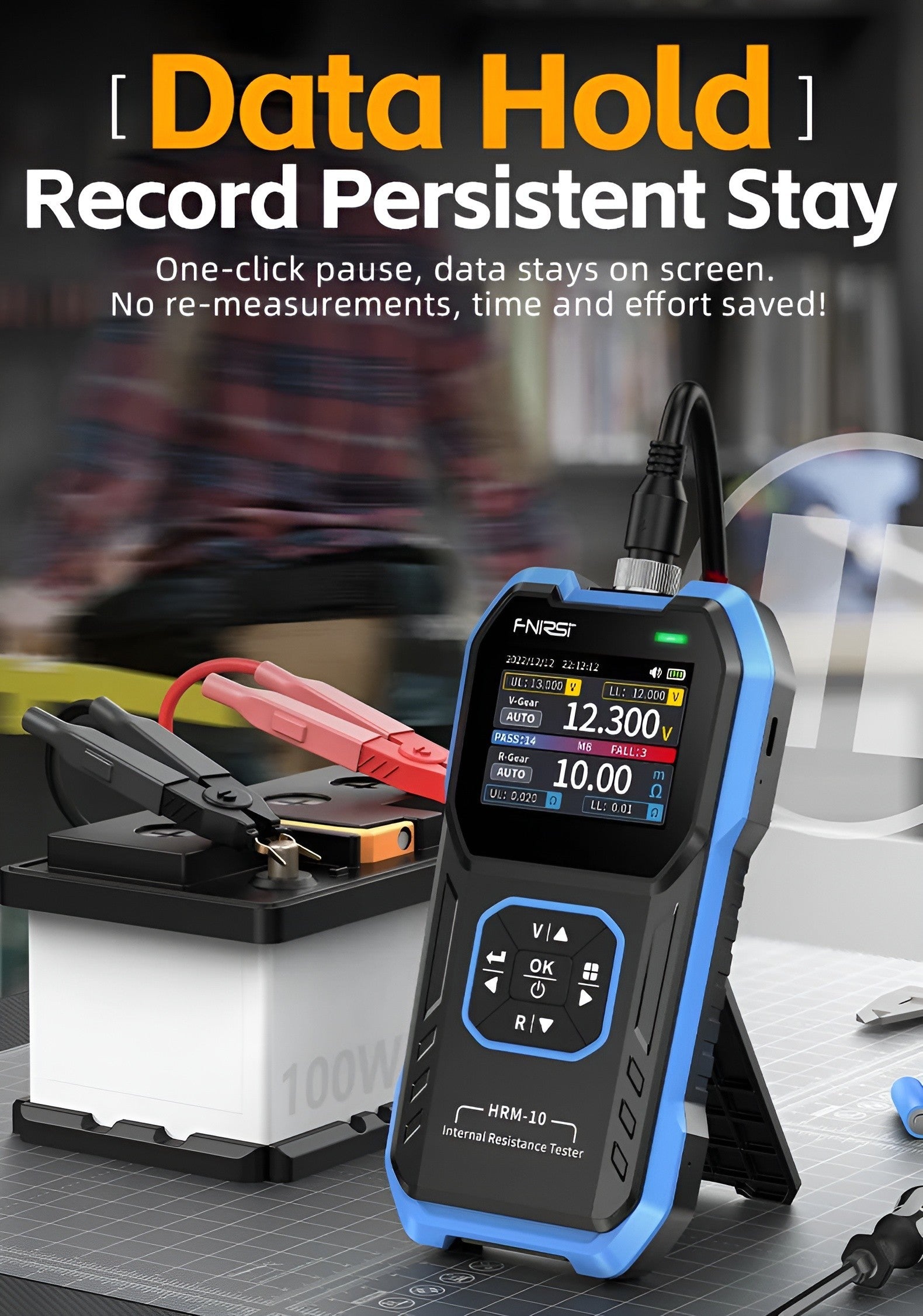

FNIRSI® HRM-10 Battery Voltage Internal Resistance Tester

6,886.50 EGP

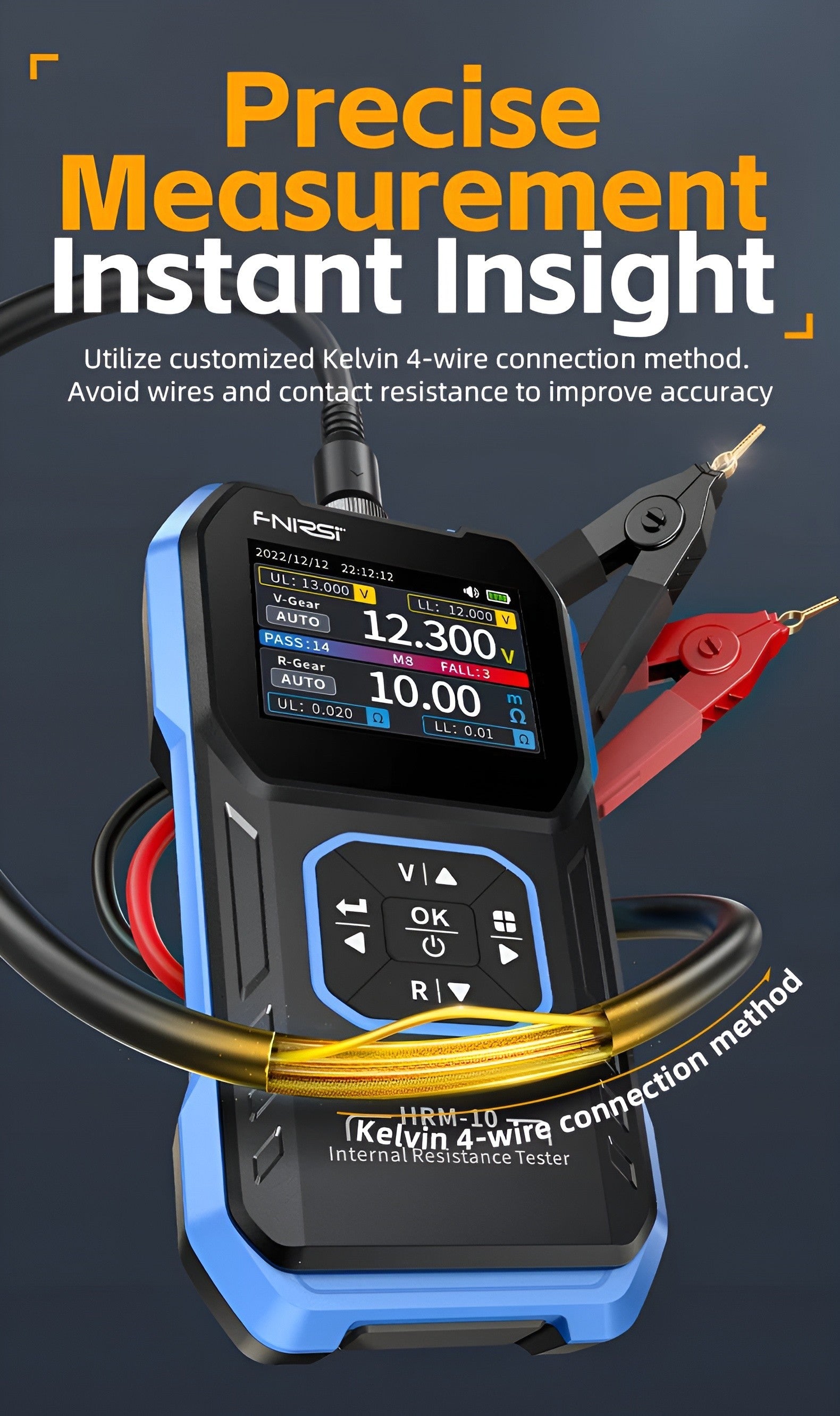

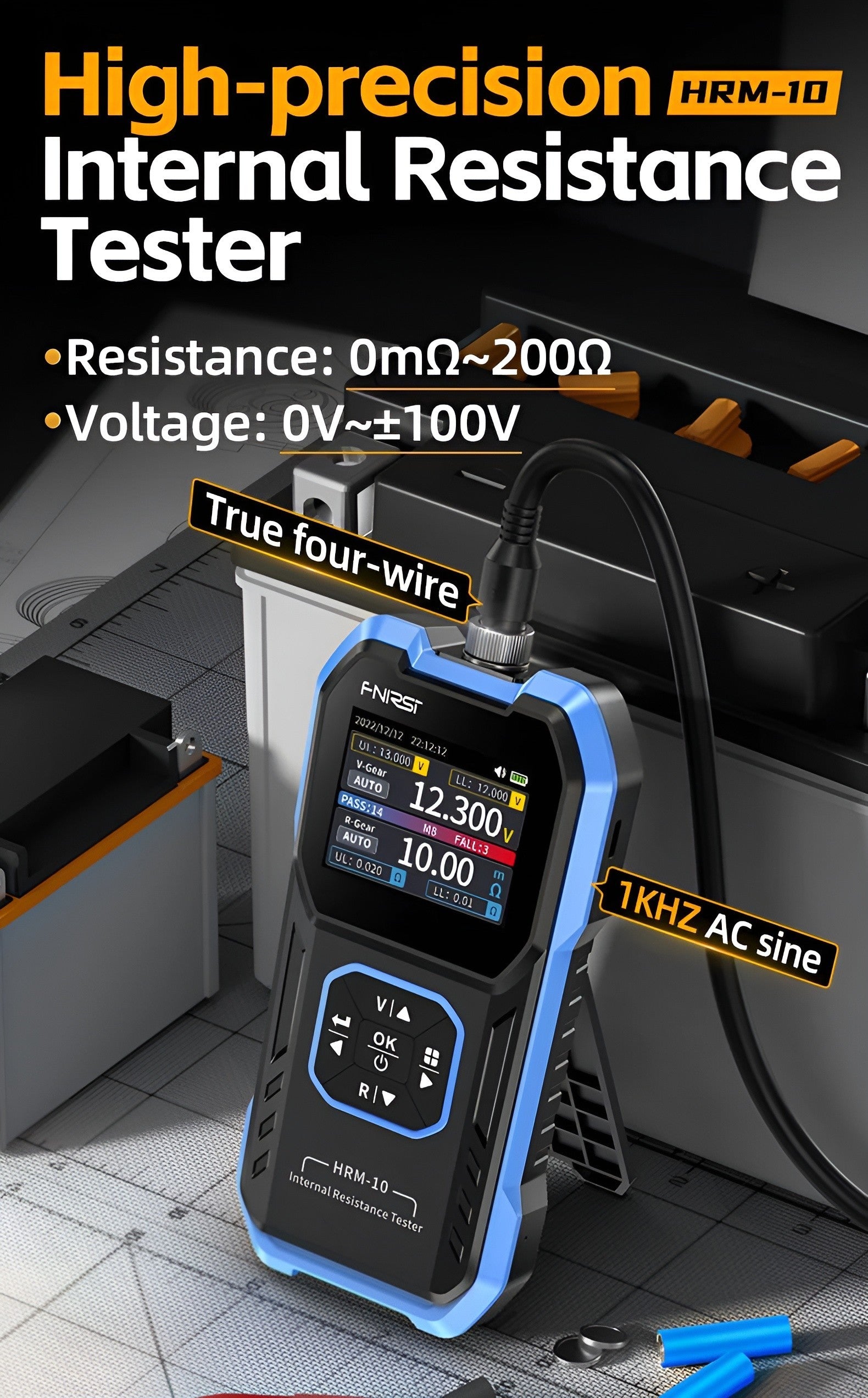

FNIRSI "HRM-10" is our company's first handheld high-precision attery internal resistance meter. It is a true four-wire measurement internal resistance meter, designed with precision, convenient to carry. The device can …

  • Product Code: CI-38
  • Availability: In Stock
  • Ex Tax: 6,886.50 EGP

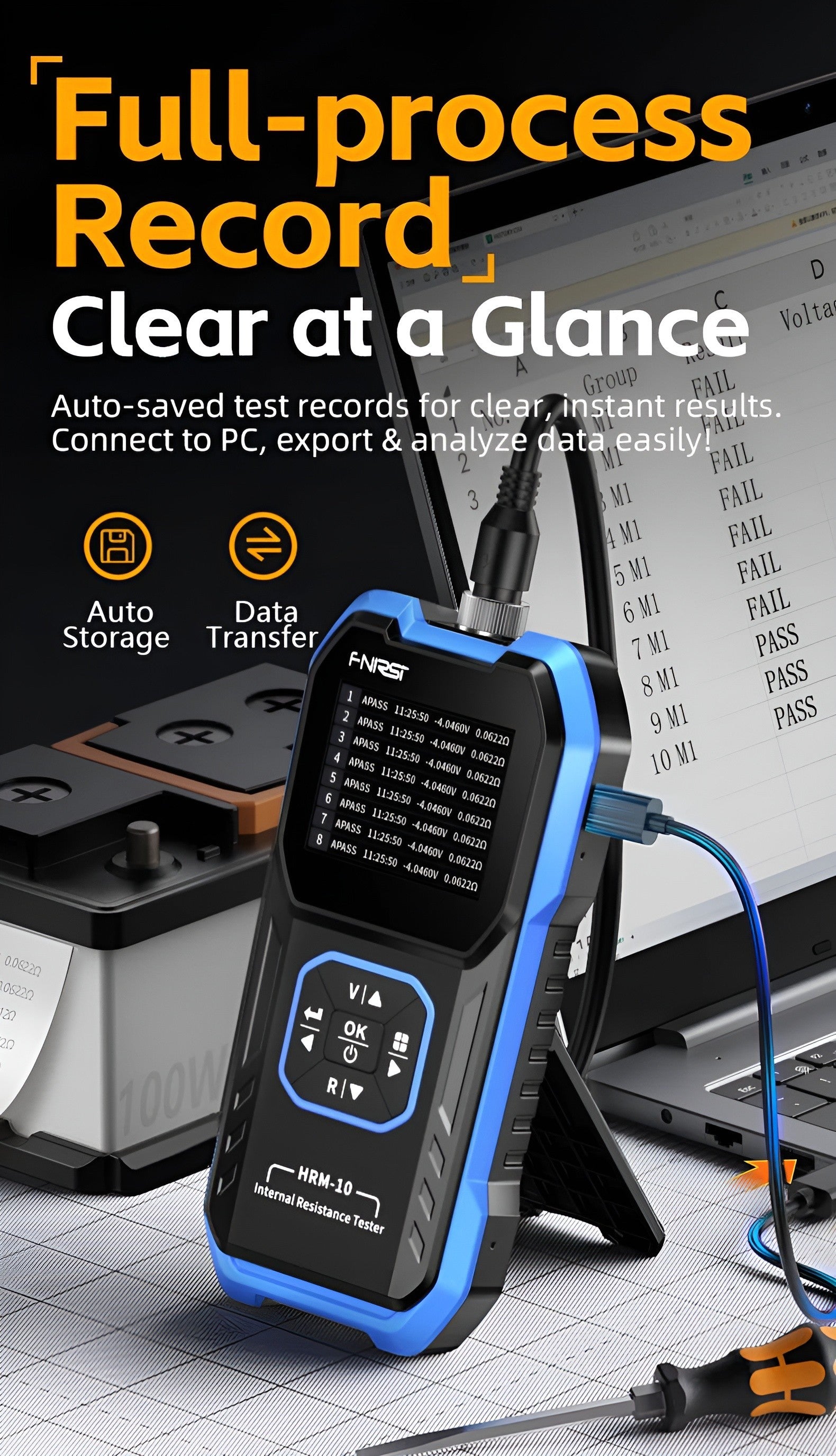

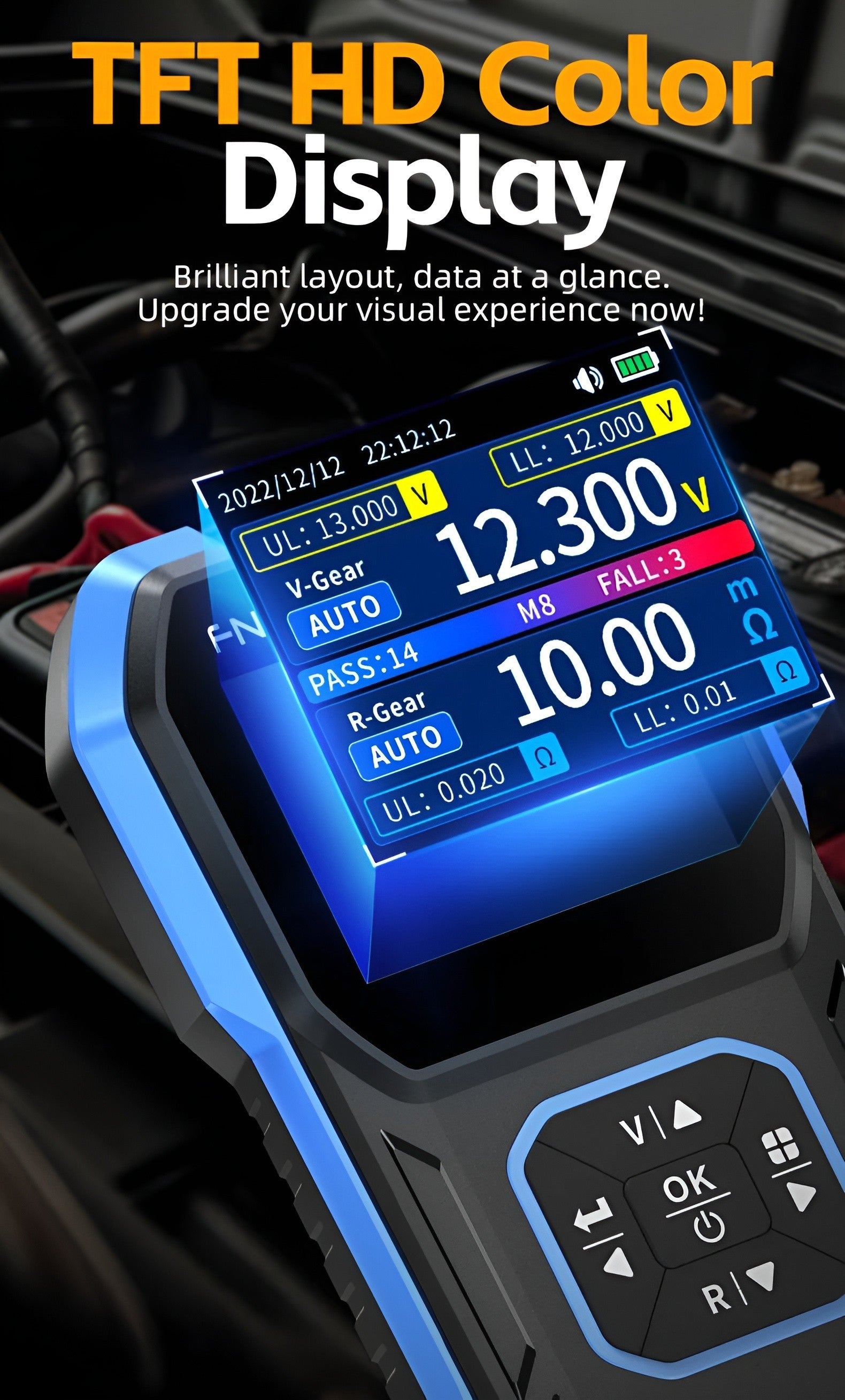

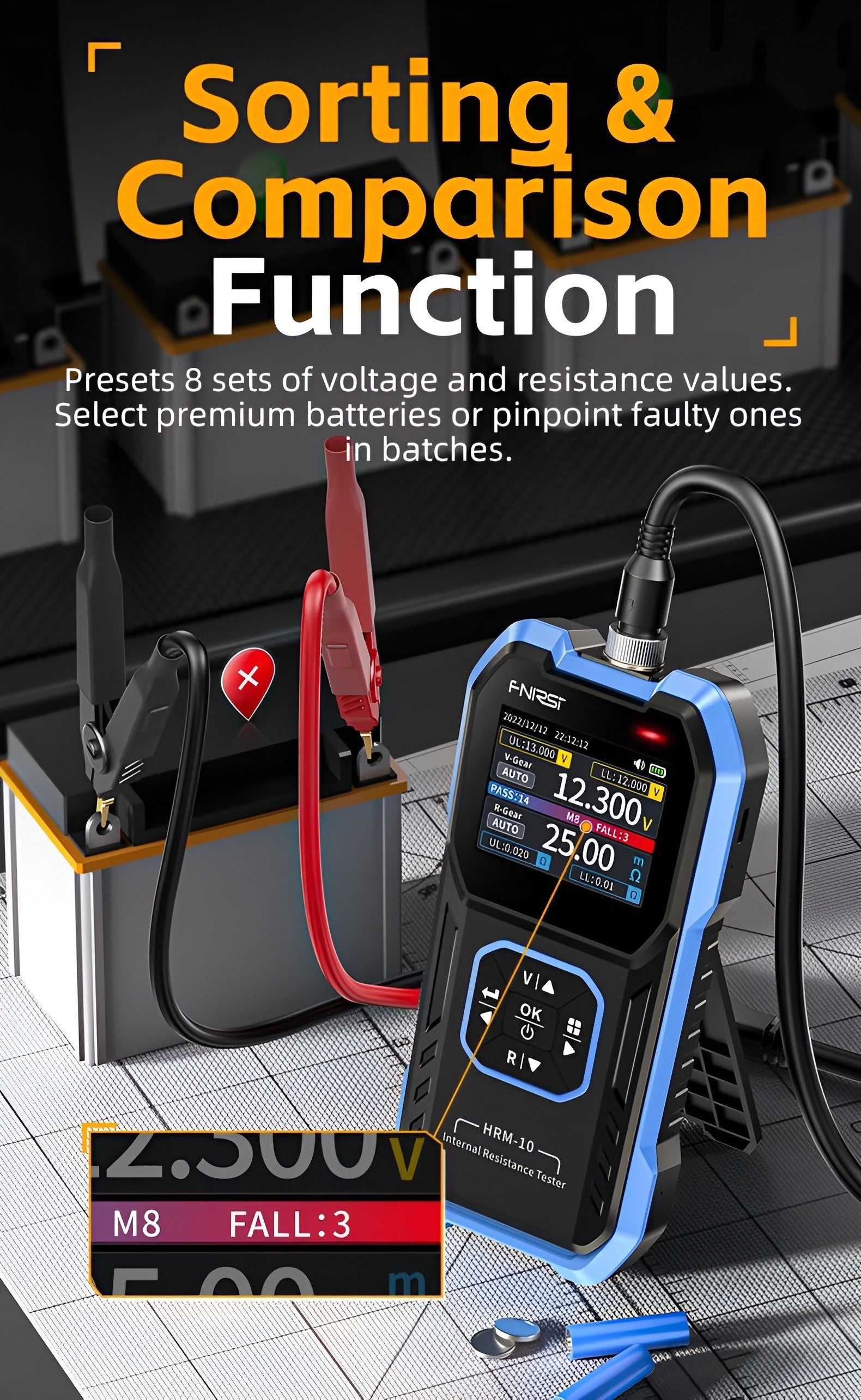

FNIRSI "HRM-10" is our company's first handheld high-precision attery internal resistance meter. It is a true four-wire measurement internal resistance meter, designed with precision, convenient to carry. The device can automatically test internal resistance and voltage values simultaneously, with measurement results displayed on the screen. Users can also manually adjust the voltage and resistance range. The product features a sorting mode, automatically filtering the good and bad batteries based on user-set thresholds. It also supports historical records and exporting data tables of historical measurements.

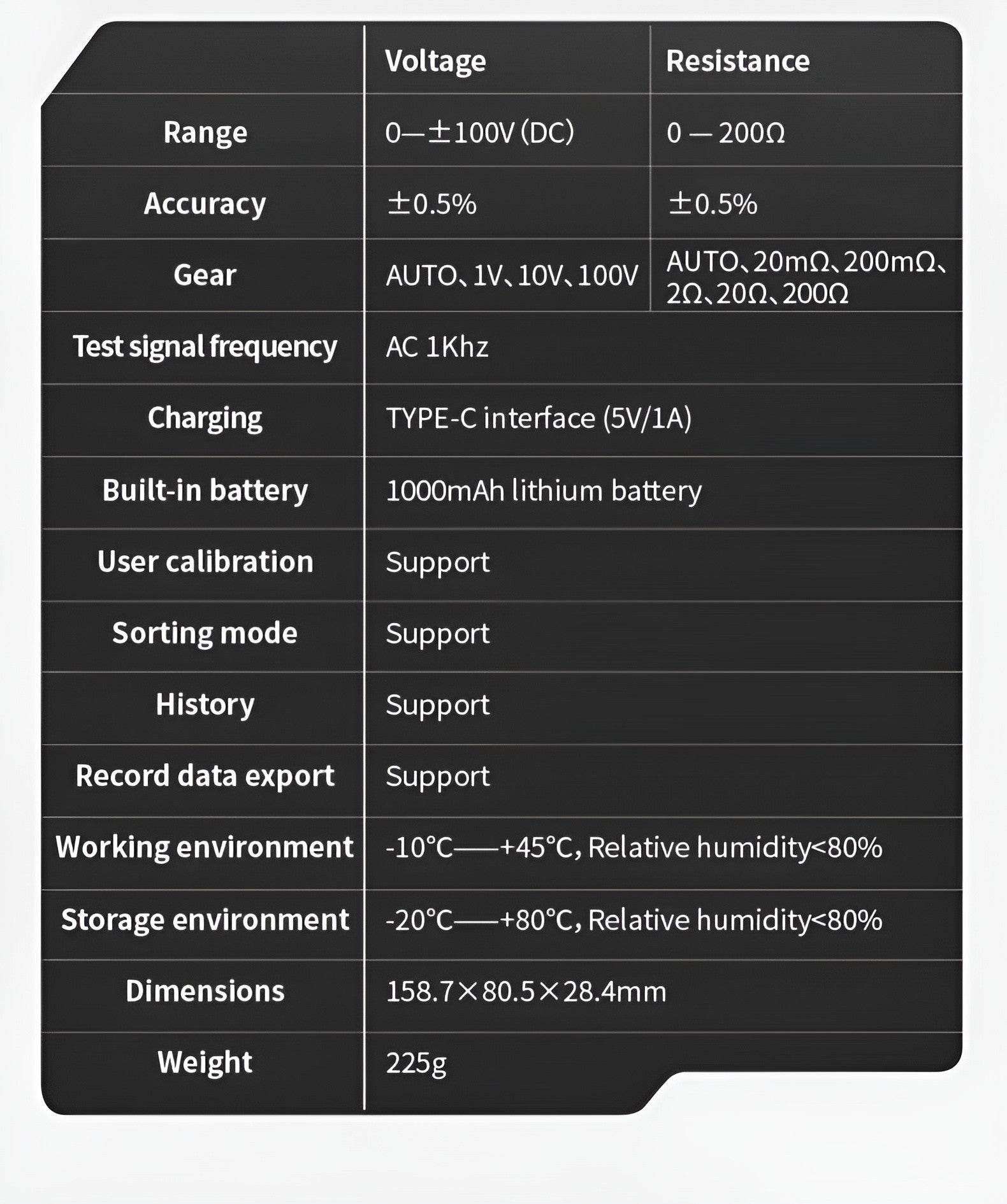

Specifications

Brand
FNIRSI
Model
HRM-10
Type
Vehicle Battery Tester
Voltage Measuring Range
0 ~ ±100V (DC)
Voltage Gear
Auto, 1V, 10V, 100V
Resistance Measuring Range
0 ~ 200Ω
Resistance Gear
Auto, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω
Accuracy
±0.5%
Signal Frequency
AC 1Khz
Rechargeable
Type-C Intrrface (5V/1A)
Battery
1000mAh lithium battery
User Calibration
Support
Sorting Mode
Support
History Recoed
Support
Recorded Data Export
Support
Working Environment
-10℃ ~ +45℃, relative humidity < 80%
Storage Environment
-20℃ ~ +80℃, relative humidity < 80%

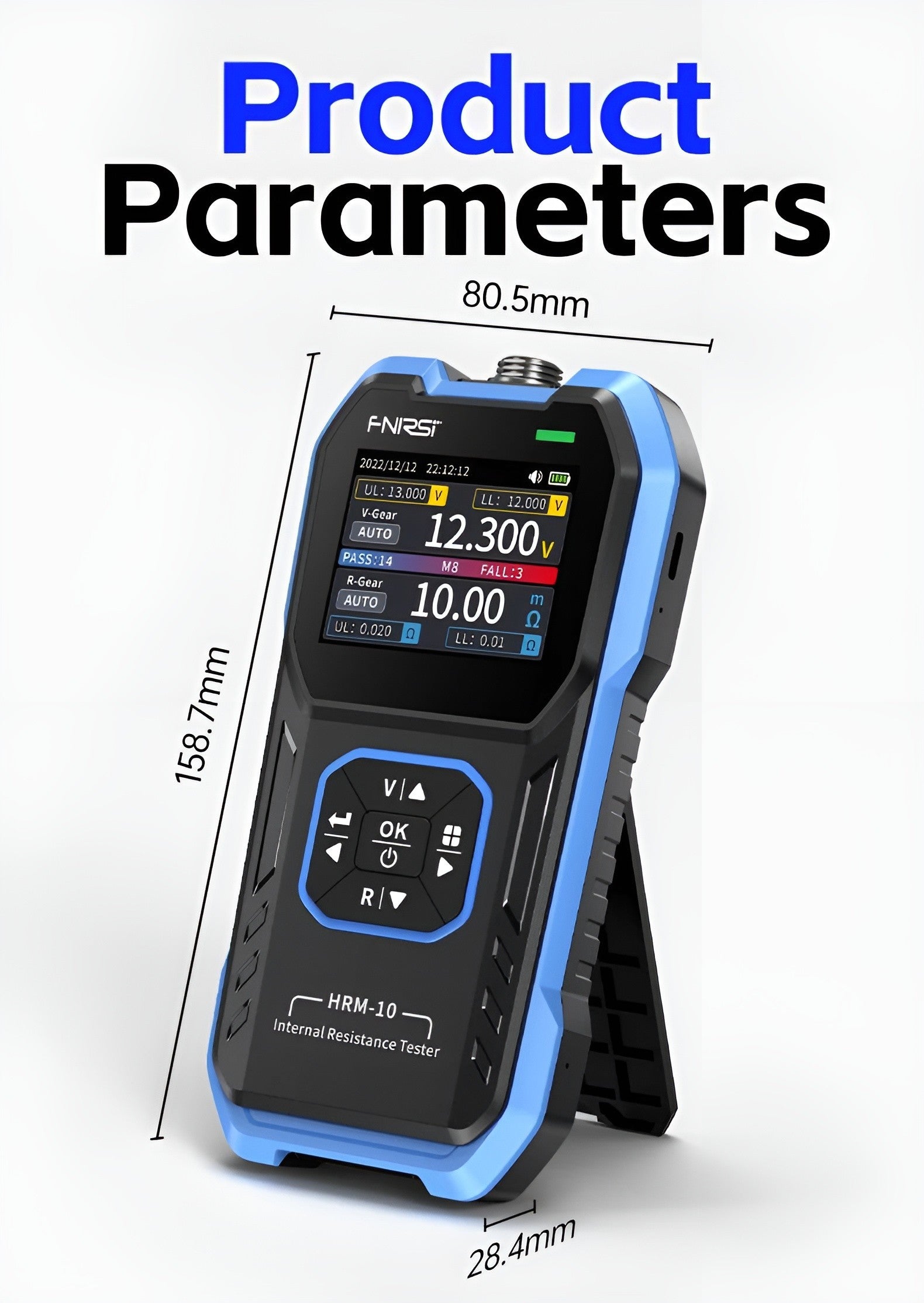

Size
158.7x80.5x28.4mm
Weight
225g
